材质

马钢，环保，耐指纹1.2mm SGCC

芯片组

Intel® C612 chipset

处理器

Intel® Xeon® Processor E5-2600 V3 Single Socket LGA-2011-3 (Socket R3) supported,

内存

in 8 DIMM slots8 288-pin DDR4 DIMM slots; 最大支持512G ECC DDR4 2400†MHz

存储

主板自带10 *SATA3 (6 Gbps) ports; 支持RAID 0,1,5,10，机箱前置4组热拔插硬盘（兼容2.5寸 SSD/HDD）

LAN

Intel® i210 Gigabit Ethernet ControllerShare with IPMISupports 10Base-T, 100BASE-TX, and 1000BASE-T, 2*RJ45 output

Audio

ALC 1150 HD Audio

显示输出

1 VGA port

COM

1 COM Port(RS232)

USB

8 USB 3.2 Gen1 ports (6 rear + 2 via headers); 4 USB3.0 ports could be upgraded to 4 USB3.1(10 Gb/s) ports (2 rear, 2 by header)(BOM option)

扩展插槽

4 PCI-E 3.0 x16

2 PCI-E 2.0 x1 (in x4 slot)

*4 PCI-E3.0x16 slots are running at 16/16/NA/8 or 16/8/8/8

*PCI-E Slot#1 (x4) and Slot#4 (x16) are disabled when an Intel Core i7-5820K is installed

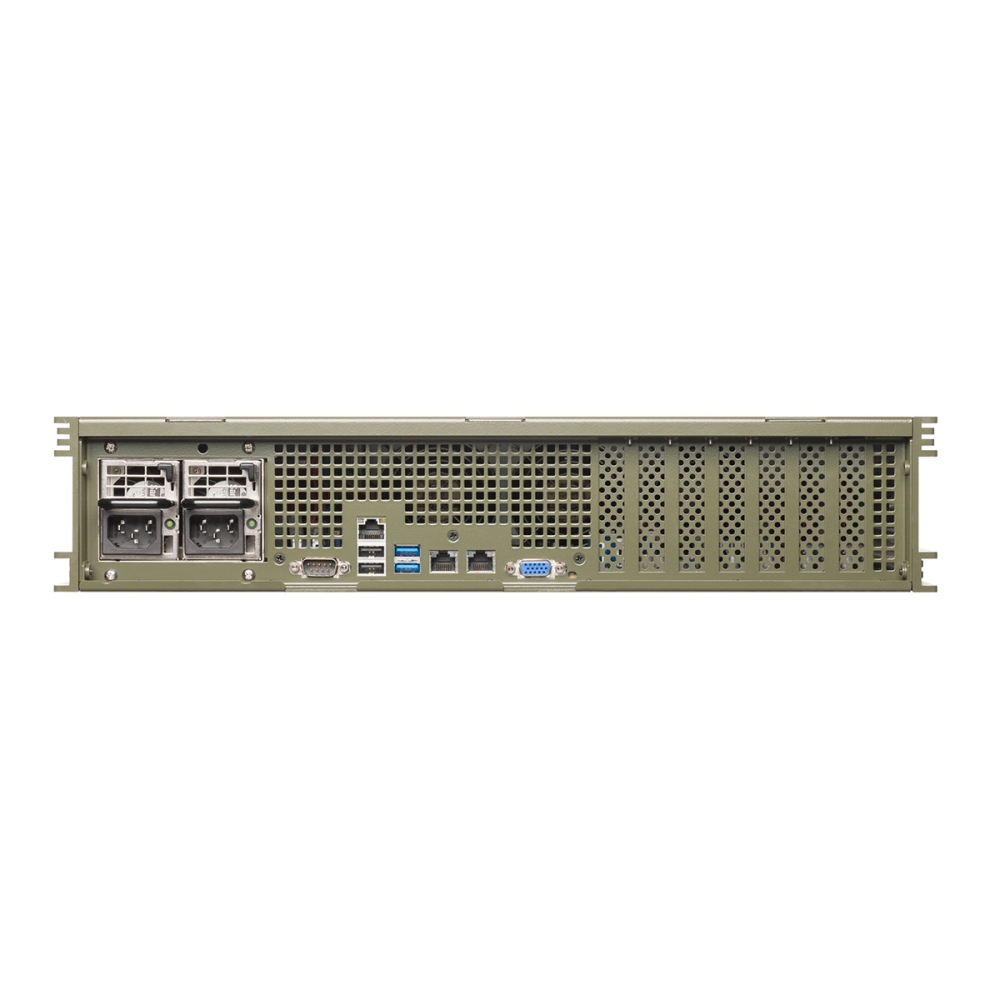

I/O接口

PS/2*1 USB3.0*6 LAN*2 VGA*1 SPF*1 音频*1 TPM*1

电源

1+1 2U服务器冗余电源额定550W

操作系统

Windows ，Red Hat Enterprise Linux，CentOS，Ubuntu，SUSE Linux

尺寸

630（L）*437.5（W）*88（H）mm

颜色

GY06 军车绿

温度

工作温度：0-60℃；存储温度：-20℃-70℃

湿度

0%-95% @（40℃非凝结）

振动

10g，11ms，半正弦

冲击

0.4Grms(10~500Hz)

可靠性

可靠性：MTBF≥50000h; MTTR≤0.5h
